Cantilever Structure – Nazareth College

Melbourne, VIC

Discover the custom curved cantilever structure at Nazareth College, providing amphitheatre coverage with durable Valmex FR580 in maroon.

Project Value
Approx. $58,000
Industry/Sector
Education
Client
Nazareth College
Completed
December 2023
Material Used
Valmex FR580 Fabric with powder coated steelwork

Nazareth College sought to enhance their outdoor amphitheatre with a functional and visually appealing cover, creating a space that could be utilised in various weather conditions. The custom curved cantilever structure not only met these needs but also seamlessly integrated with the ongoing landscaping work on site.

Design and Specifications

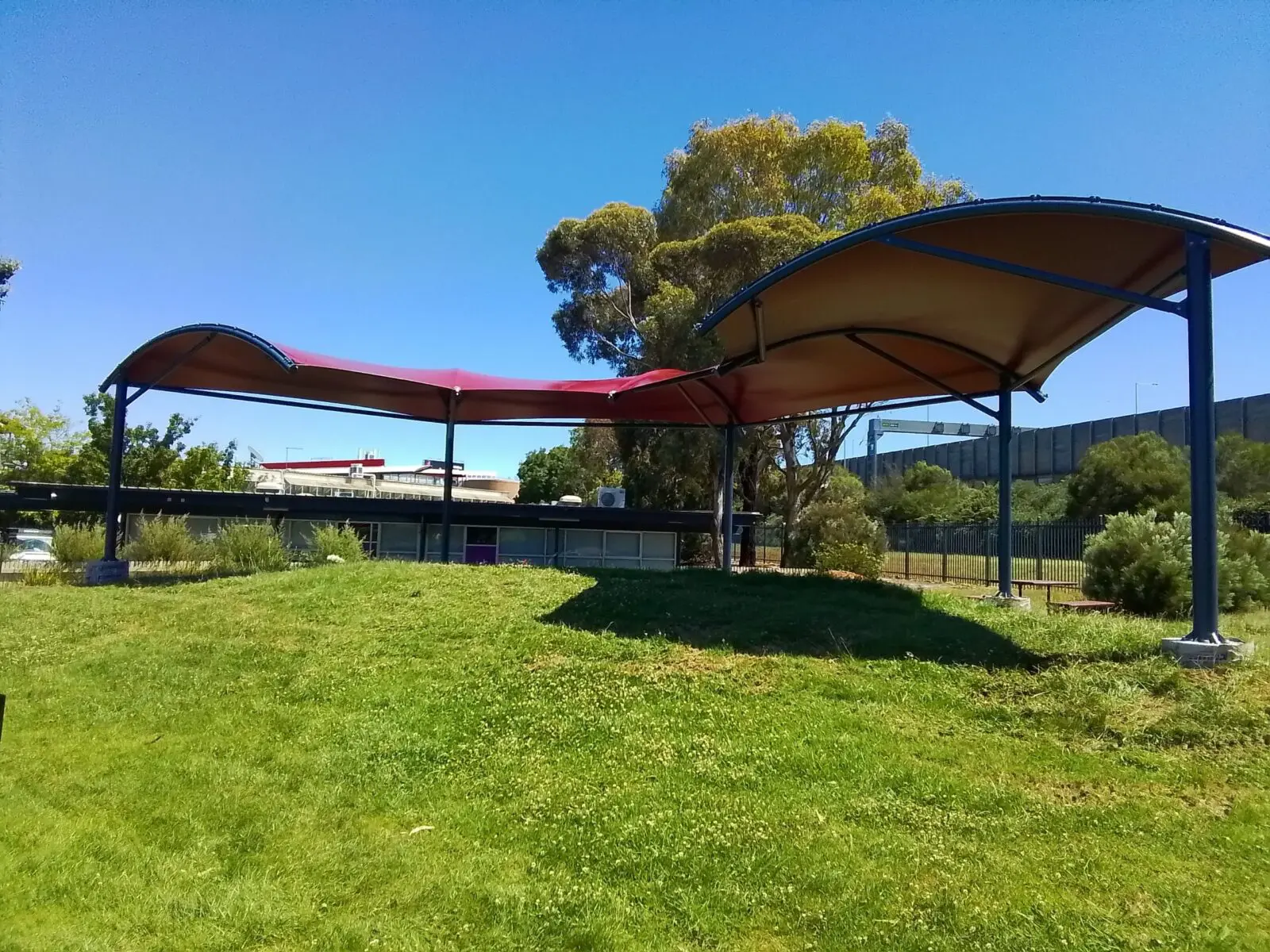

The custom curved cantilever structure spans approximately 15.5 metres by 5 metres, providing ample coverage for the amphitheatre. The chosen fabric, Valmex FR580 in Maroon, offers a striking appearance while delivering essential protection from the elements. This high-performance fabric is both fire-retardant and durable, ensuring long-term reliability and safety.

The supporting steelwork was hot dip galvanised and powder coated, providing a robust framework that resists corrosion and adds to the structure’s aesthetic appeal. The powder-coated finish was carefully selected to complement the fabric and the surrounding environment, creating a cohesive and attractive look.



Engineering Challenges and Solutions

The project required close coordination with landscapers working concurrently on the site to ensure minimal disruption and protect the surrounding areas. Heavy vehicle access was restricted, necessitating innovative approaches to construction logistics.

To avoid damage to the site, soil from the footings was manually barrowed offsite, and concrete was pumped in from an external location. These logistical challenges were managed efficiently, demonstrating the project team’s adaptability and commitment to maintaining the site’s integrity.



Construction and Execution

The installation process was meticulously planned and executed, ensuring that the structure was built to the highest standards without compromising the existing landscaping efforts. The hot dip galvanised and powder-coated steelwork provided both durability and an attractive finish, aligning with the college’s aesthetic goals.

The curved design of the cantilever structure required precise engineering to ensure stability and functionality. The project team’s expertise ensured that the structure was not only visually appealing but also structurally sound, providing reliable protection for the amphitheatre.



Client Satisfaction and Impact

Completed in December 2023, the cantilever structure at Nazareth College has significantly enhanced the functionality and appeal of the outdoor amphitheatre. The space now offers a sheltered environment for various activities, from performances and assemblies to casual gatherings, regardless of weather conditions.

Nazareth College expressed great satisfaction with the project, highlighting the improved usability and aesthetic enhancement of the amphitheatre. The structure has become a valuable asset to the college, providing a versatile and protected outdoor area for students and staff.



Conclusion

The cantilever structure at Nazareth College exemplifies how custom-designed solutions can transform educational spaces. By addressing both practical needs and aesthetic considerations, the project has delivered a high-quality, functional, and visually appealing structure that enhances the overall campus environment. This project showcases the importance of innovative design and careful execution in creating lasting improvements to educational facilities.
